14''x17'' Wireless and Wired Dual mode NDT Flat Panel Detector Industrial use non detective testing Flat Panel Detector

待议 分享

Product Description
GLM1417A

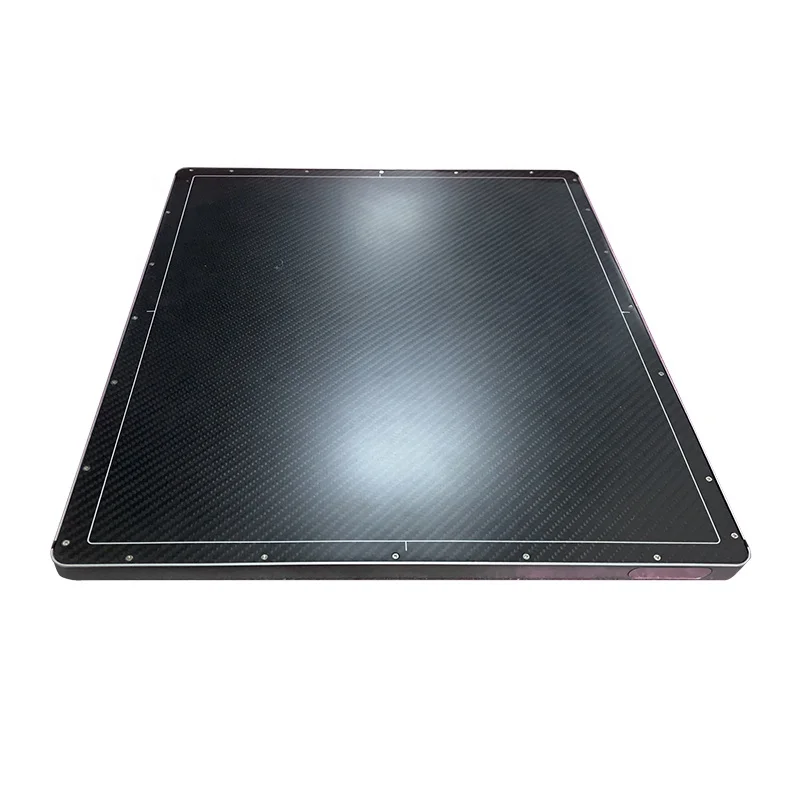

14''x17'' Wireless and Wired Dual mode NDT Flat Panel Detector for industrial use non-detective testing

GLM1417A is a 14×17-inch wireless and wired dual mode portable amorphous silicon flat panel detector. It provides high radiation resistance, high compatibility for using in different occasions and environments, and overall high reliability.

The software SDK provides support for detector calibration, configuration, image acquisition, pre-processing and viewing on an end-user tablet or workstation running the MS Windows operating system.

With the innovative technology, it delivers exceptionaland outstanding real-time images, which makes it a perfect choice for industrial NDT & EOD applications.
Features
a-Si sensor technology;
35×43 cm² imaging area;
Best-in-class 100 μm pixel pitch with 16-bit ADC for more image details;
Up to 180 sec. X-ray exposure window;
Robust wired and 5G wireless data interface;
Compact and lightweight design;
More than 6 hours battery capacity.

Specification
Detector Technology
Amorphous Silicon
Scintillator
GOS
Active Area
350mm x 430mm
Number of Pixels
3500 x 4300
Pixel Pitch
100 um
AD Conversion
16 bit
Trigger Mode
Software
Data Interface
GigE/WiFi(802.11ac)
Dimension
465*390*20mm
Weight
4.2 kg with battery
Drop Height
120cm
Static Loading
150kg Uniformly
Battery Capacity
6 h
Panel protection
IP65

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Packing details:
Protective foam + outer carton
1 unit per carton
G.W./carton: 8 Kg
Carton size: 66*66*25 cm

Delivery: about 2-4 weeks upon receipt of deposit.
Company Profile
00:00
02:00
Founded in 2007, Threestars is a leading high-tech enterprise in Shezhen, China, specializing in the designing, manufacturing and marketing of Medical Consumables, Medical Self-service Systems and Medical Diagnostic solutions. Our main products include Medical X-Ray Films (thermal x ray film, laser x ray film, darkroom x ray film, dental x ray film, etc.) Industrial X Ray Films, Medical and Industrial NDT Flat Panel Detector, Mobile Digital Radiography, Doppler Ultrasound Machine, Medical Infusion & Syringe Pump and so on.
We pride ourselves on our strong innovation ability and R & D capability, which enable us to obtain a number of product patents, computer software copyright, and relevant certificates.
With over 10 years' experiences in the industry, we have established a strategic partnership with many hospitals in China, our Medical Self-service Systems have significantly improved the work efficiency for hospitals and have saved so much time and efforts for thousands of patients who have had to hover in hospitals a day long or even more time in the past. We have also developed long-term business relationships with buyers from over 50 countries and regions in Asia, Middle East, Africa, Europe and America.

We are dedicated to providing our customers with quality, innovative products at affordable cost as well as offering our customers professional and high-quality customer service.
